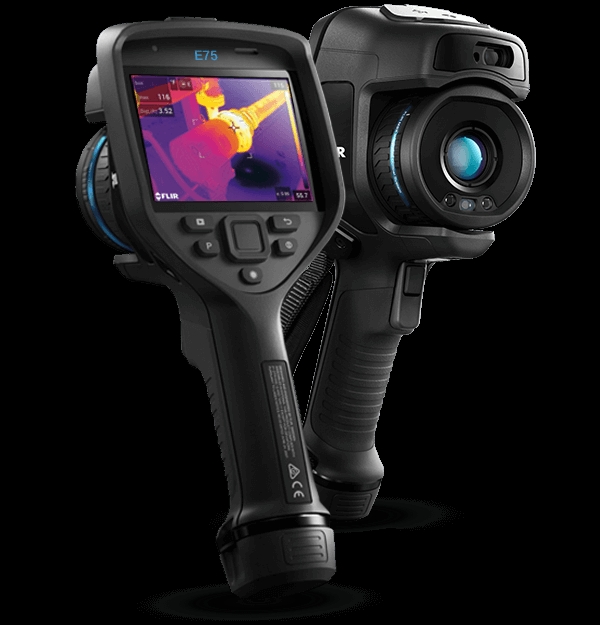

菲利尔FLIR E75长沙株洲湘潭哪儿卖/批发

测量数据

保护玻璃材质

Dragontrail®

显示屏

4", 640 x 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness

测量与分析

区域测温

1 in live mode

区域测量信息

No

语言

21

测量校正

Yes

测量预设

No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2

参考温度

Yes

点温仪

3 in live mode

激光距离测量

Yes, on-screen

自动热点与冷点检测

Auto-maximum/minimum markers within area

成像与光学

高宽比

4:3

自动旋转

Yes

热像仪软件升级

Use PC software FLIR Tools

颜色

Black

色深（位数）

24

调色板

Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC

探测器类型与像素间距

Uncooled microbolometer, 17 µm

数码相机

5 MP, 53° x 41° FOV

数字变焦

1-4x continuous

光圈数

1.3, 24°

焦距

17 mm (0.67 in.), 24°

调焦

Continuous, one-shot laser distance meter (LDM), one-shot contrast, manual

图库

Yes

图像调节

•Automatic •Automatic maximum •Automatic minimum •Manual

图像频率

30 Hz

图像模式

Infrared, visual, MSX®, Picture-in-Picture

草图注释

Yes: on infrared images only

红外图像

Yes

镜头识别

Automatic

最小焦距

0.15 m (0.49 ft.), 24°

最小焦距（带MSX）

0.5 m (1.64 ft.), 24°

非辐射红外或可见光视频

H.264 to memory card

非辐射红外视频流

H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi

画中画

Resizable and movable

辐射红外视频录制

Real-time radiometric recording (.csq)

辐射红外视频流

Over UVC

空间分辨率（IFOV）

1.31 mrad/pixel, 24°

波长范围

7.5 - 14.0 µm

取景器

No

MSX

Embosses visual details on full resolution thermal image

草图

From touchscreen

UltraMax（超级放大）功能

Super-resolution process quadruples pixel count, activated in FLIR Tools+

视角

80°

可见光视频流

Yes

存储介质

图像格式

Standard radiometric JPEG, measurement data included

电源

电池寿命（工作）

> 2.5 hours at 25°C (68°F) and typical use

电池工作时间

Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical use

电池尺寸（长×宽×高）

150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in.)

电池类型

Li-ion battery, charged in camera or on separate charger

电池电压

3.6 V

电池重量

140 g (4.9 oz.)

充电温度

0°C to +45°C (+‎32°F to +113°F)

充电时间（使用双座充电器）

2.5 hours to 90% capacity with charging status indicated by LEDs

外接电源管理

AC adapter 90–260 V AC, 50/60 Hz, or 12 V from a vehicle (cable with standard plug—optional)

电源管理

Automatic shut-down and sleep mode

合规性与认证

NIST Certification

Yes

环境参数

抗跌落

Designed for 2 m (6.6 ft.)

电磁兼容性（EMC）

•ETSI EN 301 489-1 (radio) •ETSI EN 301 489-17 •EN 61000-6-2 (immunity) •EN 61000-6-3 (emission) •FCC 47 CFR Part 15 Class B (emission)

发射率校正

Yes: variable from 0.01 to 1.0 or selected from materials list

湿度（工作及存放）

IEC 60068-2-30/24 hours/95% relative humidity 25–40°C (77–104°F)/two cycles

工作温度范围

–15°C to 50°C (5°F to 122°F)

无线电频谱

•ETSI EN 300 328 •FCC Part 15.249 •RSS-247 Issue 2

安全性

EN/UL/CSA/PSE 60950-1

存储温度范围

–40°C to 70°C (-40°F to 158°F)

三脚架安装

UNC 1/4"–20

抗撞击、抗振动和封装

25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1

连接与通信

音频

Microphone and speaker for voice annotation of images

充电

In camera (AC adapter or 12 V from a vehicle) or two-bay charger

通信接口

USB 2.0, Bluetooth, Wi-Fi

远程控制

•Using FLIR Tools (using USB cable) •FLIR Tools Mobile (over Wi-Fi)

存储介质

Removable SD card (8 GB)

USB

USB Type-C: data transfer/video/power

USB-标准

USB 2.0 High Speed

视频输出

DisplayPort over USB Type-C

METERLiNK

Wireless connection (Bluetooth) to: FLIR meters with METERLiNK

WiFi

Peer to peer (ad hoc) or infrastructure (network)

设置命令

Local adaptation of units, language, date and time formats

运输信息

包装

Infrared camera with lens, battery (2 ea), battery charger with power supply, front lens and light protection, straps (hand and wrist), lanyards, lens caps (front and rear), lens cleaning cloth, 15 W3 A power supply, printed documentation, 8 GB SD card, Torx screwdriver, cables (USB 2.0 A to USB Type-C,USB Type-C to HDMI, USB Type-C to USB Type-C)
